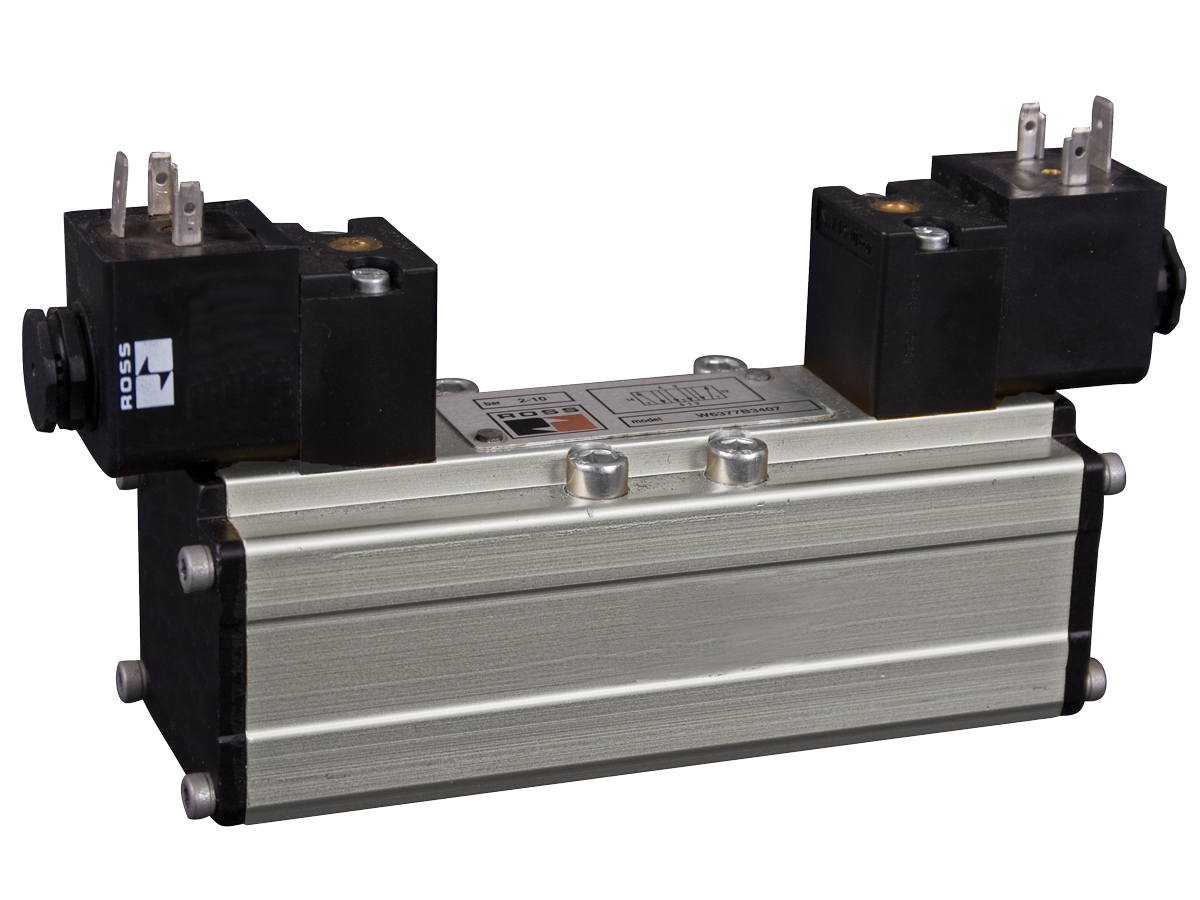

ISO 5599-1 [W60 & W64 Series] Spool & Sleeve and Poppet, Individual Valve Connection
Installation Instructions - W60 Series
Installation Instructions - W64 Series
Product Catalog - ISO 5599-1
- Poppet & Spool & Sleeve Options
- Pilot operation provides high shifting force with low power consumption
- Available port sizes include: 1/8”, 1/4”, 3/8”, 1/2”, and 3/4”
- Inlet pressure from vacuum to 150 psig (10 bar)
- Available with Buna-N and Flouroelastomer seals for a wide temperature range
- Single base and manifold base mounting
Directional Control Valves ISO 5599-1 W60 & W64 Series Product Overview
The ROSS® ISO 5599-1 valves W60 Series are base mounted spool and sleeve valves that conform to the ISO standards 5599-1 mounting interface. These ISO Size 1, 2, and 3 valves are available as, 2- and 3-position, 5-ported 4-way valves. Solenoid pilot options include a non-locking manual override, and either internal or external pilot supply.
Please refer to the side and below for links to easily navigate and download ROSS Controls Directional Control Valves ISO 5599-1 W60 & W64 Series catalogs, installation instructions, and technical data. Additionally, you have the option to filter through all available options to discover Directional Control Valves ISO 5599-1 W60 & W64 Series variant that meets your requirements.
+
ISO 5599-1 [W60 & W64 Series]
