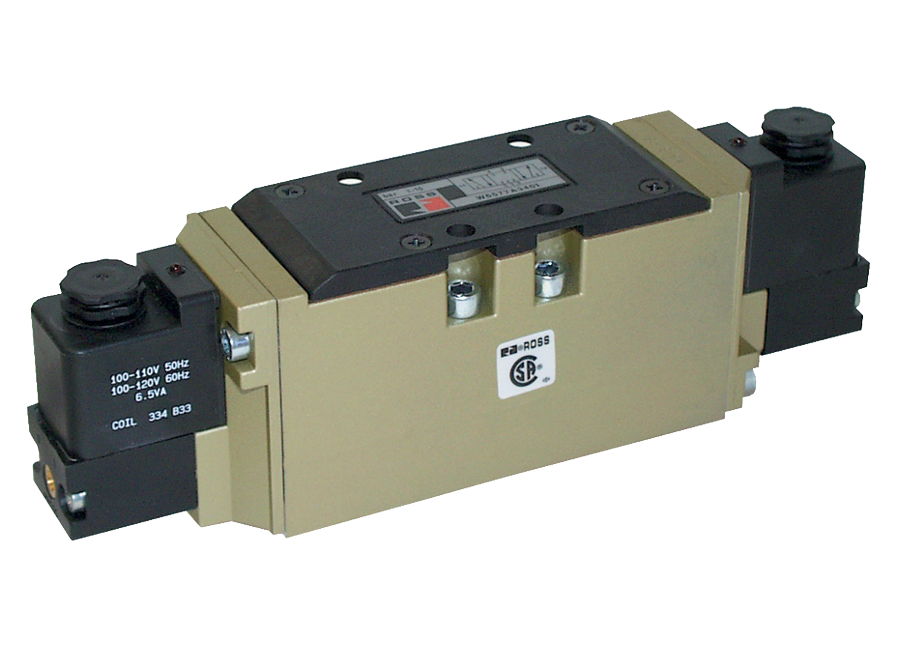

ISO 5599-2 [W65 Series] W6556A2411
- Pilot operation provides high shifting force with low power consumption
- Optional integrated plug-together manifold electrical connections
- Maximum Inlet pressure: 150 psig (10 bar)
- Automotive connector option mounted on individual conduit cover
- Individual sub-base or manifold base mounting
W6556A2411
$177.00
Quantity
Estimated Ship Date: 05/17/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | W65 |
| Valve Standard | ISO 5599-2 |
| Application | Standard Temperature |
| Actuation | Pneumatic |
| Function | 5/2 Single Pilot |
| Default Position | Normally Open |
| Return | Spring |
| Construction | Spool and Sleeve |
| Mounting | Base Mounted |
| Pilot Type | External |
| Size | 1 |
| Avg Cv | 1.0 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Length | 1.63 in (41.4 mm) |
| Width | 4.86 in (123.5 mm) |
| Height | 2.71 in (68.8 mm) |
| Weight | 0.8 lb (0.4 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Buna-N |
+
ISO 5599-2 [W65 Series]
W6556A2411
Contact Us for a 3D Model
+
ISO 5599-2 [W65 Series]
W6556A2411
Contact ROSS Controls for Ordering Information
+
