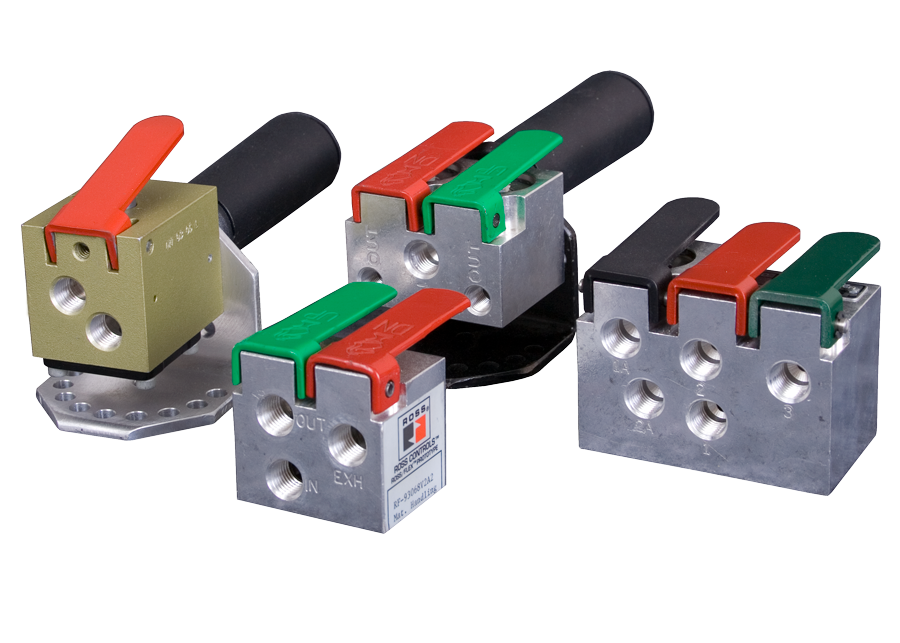

Pendant Valves 2025A2904
![](https://ross-admin-global-us-east.s3.amazonaws.com/production/uploads/series/image/255/Pendants_Manual-Control.png)
- A durable pneumatic solution that can be used anywhere manual control of devices is needed, such as an air hoist, air motor, or counterbalance cylinder
- Ideal for use on or with material handling devices such as overhead cranes or air hoists
- Can withstand even the toughest environments
2025A2904
Quantity
Estimated Ship Date: 10/08/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
Valve Type | Directional Control |
Series | Pendant |
Application | General |
Actuation | Manual Pendant |
Function | 3/2 |
Default Position | Normally Open |
Return | Spring |
Thread Type | NPT |
Construction | Poppet |
Mounting | Inline |
Cv (1-2) | 0.24 |
Cv (2-3) | 0.42 |
Ambient Temperature | -40 to 175 F (-40 to 80 C) |
Media Temperature | -40 to 175 F (-40 to 80 C) |
Fluid Media | Filtered Air |
Operating Pressure | 0 to 150 psig (0 to 10 bar) |
Valve Body Material | Aluminum |
Number of Handles | 0 |
Protective Cover | Not Included |
Inlet Pipe Size | 1/4" |
Outlet Pipe Size | 1/4" |
Exhaust Pipe Size | 1/4" |
Width | 6.0 in (170 mm) |
Weight | 1.0 lb (0.5 kg) |
Application | Rigid Dial |
Number of Levers | 1 |
Number of Valves | 1 |
Length | 1.8 in (46 mm) |
Height | 4.7 in (120 mm) |
