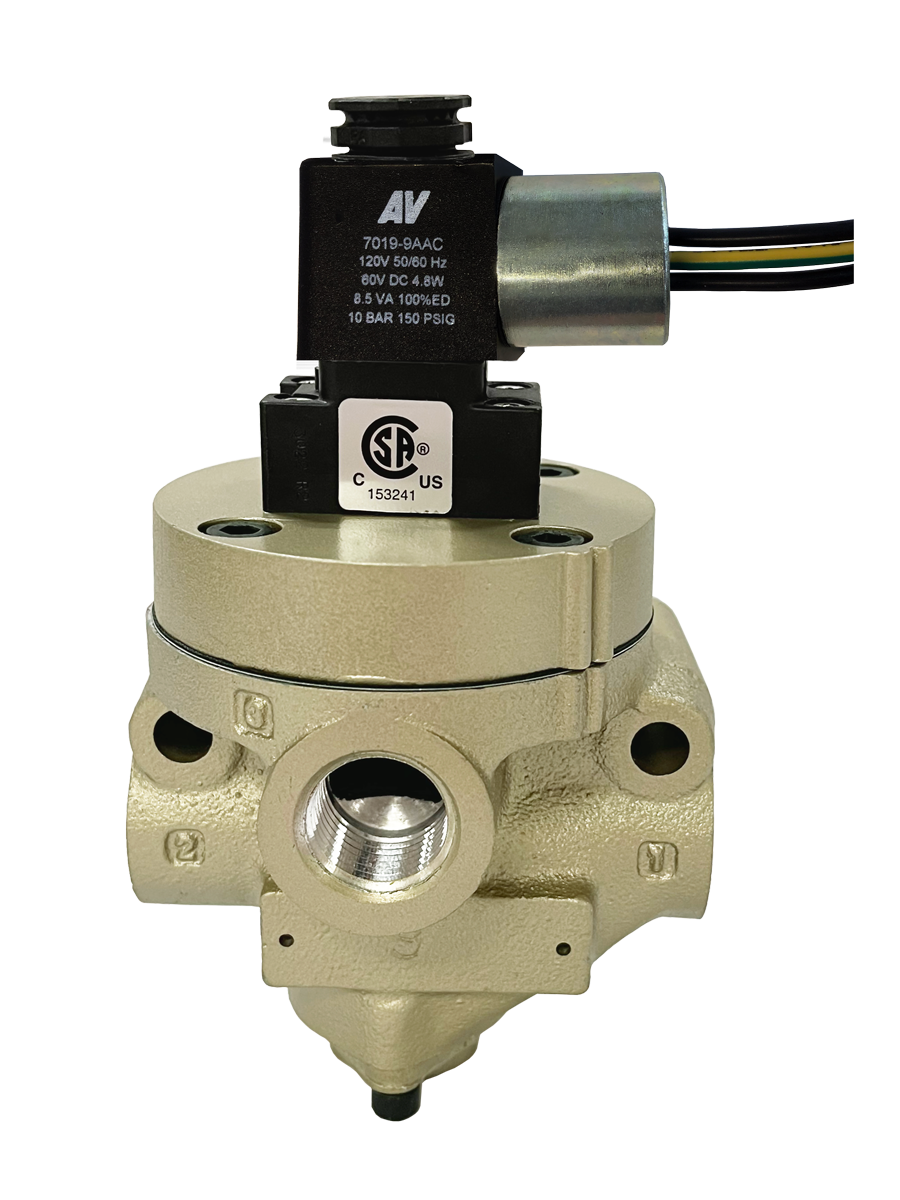

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B5001H-4
- Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
- Differential Piston Design Delivers Fast and Consistent Response Times
- Overwhelming Shifting Forces Provides No-Stick Operation
- High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
- Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life
Product Information
| Actuation | Electrical |
| Inlet Pipe Size | 3/4" |
| Construction | Poppet |
| Mounting | Inline |
| Function | 2/2 |
| Manual Override | Non-locking |
| Application | General |
| Thread Type | NPT |
| Outlet Pipe Size | 3/4" |
| Ports 1-2 Flow | 7.7 Cv (7600 l/min) |
| Pilot Type | Internal |
| Return | Spring |
| Voltage | 12 VDC |
| Duty Rating | Continous Duty |
| Power Consumption | 4.5 Watts |
| Connection | 1/2" Conduit, 30" Leads |
| Ambient Temperature | 0 to 122 F (-17 to 50 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Operating Pressure (bar) | 2 to 10 |
| Length | 4.56 in (116 mm) |
| Default Position | Normally Closed |
| Width | 3.11 in (79 mm) |
| Height | 6.61 in (168 mm) |
| Weight | 4.3 lb (2.0 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum and Stainless Steel |
| Seal Material | Fluorocarbon |
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B5001H-4
Contact Us for a 3D Model
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B5001H-4
Contact ROSS Controls for Ordering Information
+
