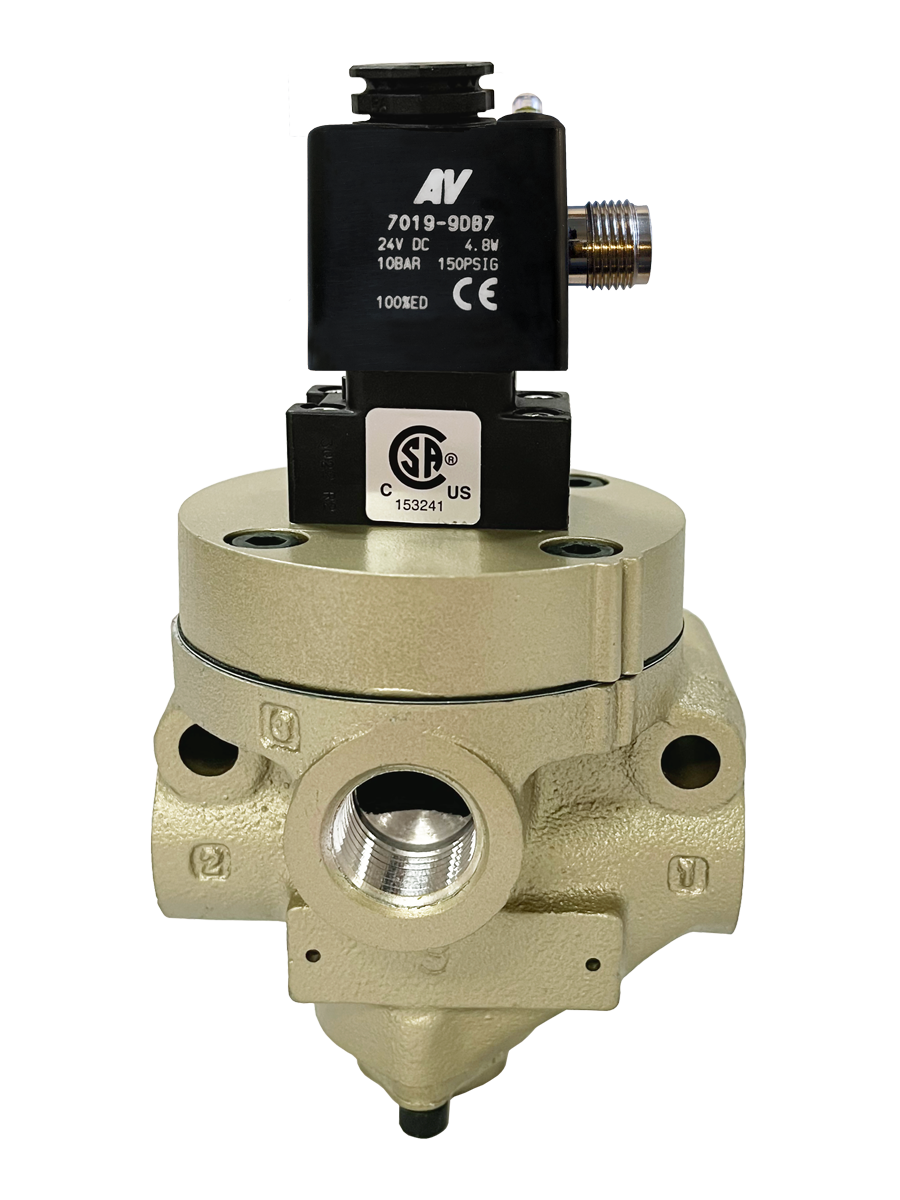

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B5002W-3
- Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
- Differential Piston Design Delivers Fast and Consistent Response Times
- Overwhelming Shifting Forces Provides No-Stick Operation
- High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
- Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life
2171B5002W-3
$346.50
Quantity
Estimated Ship Date: 02/27/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Actuation | Electrical |
| Inlet Pipe Size | 3/4" |
| Construction | Poppet |
| Mounting | Inline |
| Function | 2/2 |
| Manual Override | Non-locking |
| Application | General |
| Thread Type | NPT |
| Ports 1-2 Flow | 7.7 Cv (7600 l/min) |
| Return | Spring |
| Voltage | 24 VDC |
| Duty Rating | Continous Duty |
| Power Consumption | 4.8 Watts |
| Connection | M12 |
| Fluid Media | Filtered Air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Operating Pressure (bar) | 2 to 10 |
| Default Position | Normally Closed |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum and Stainless Steel |
| Seal Material | Buna-N |
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B5002W-3
Contact Us for a 3D Model
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B5002W-3
Contact ROSS Controls for Ordering Information
+
